| Brand Name: | ROYAL TECHNOLOGY |
| Model Number: | RTAC1800 |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/months |
PVD Brings Colors to Your Life
-- Glassware, Ceramicware, Porcelain PVD Decorations

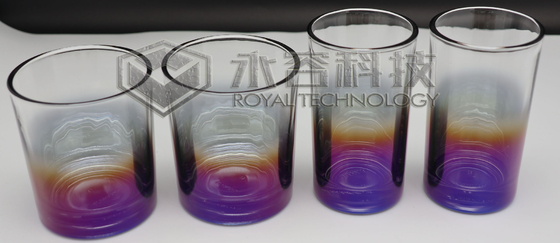

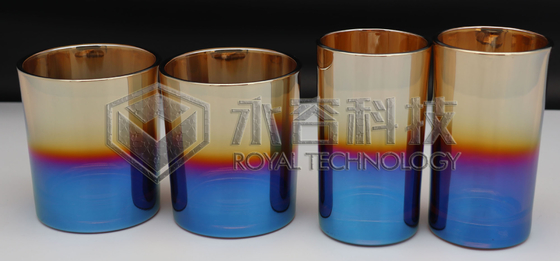

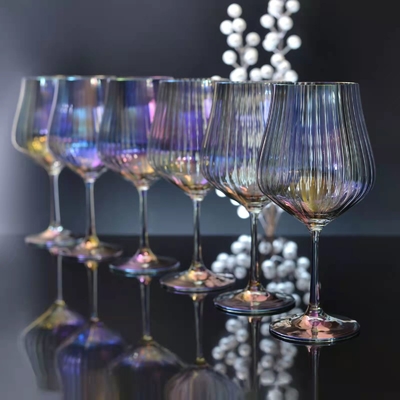

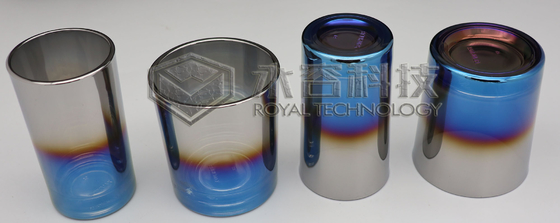

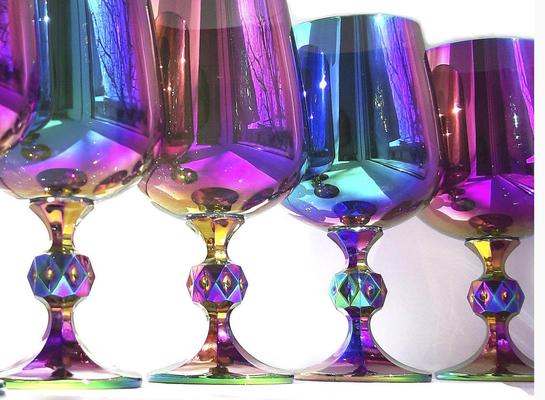

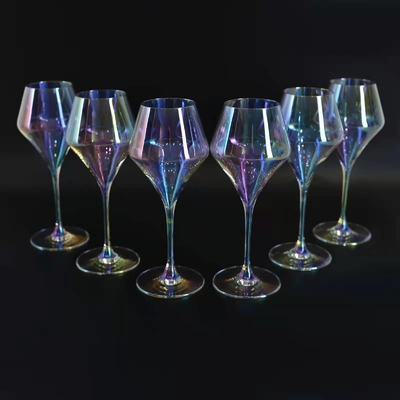

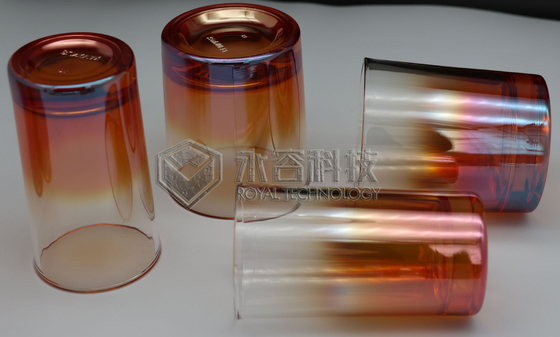

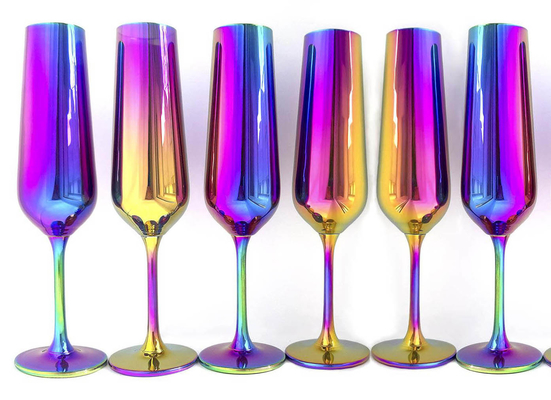

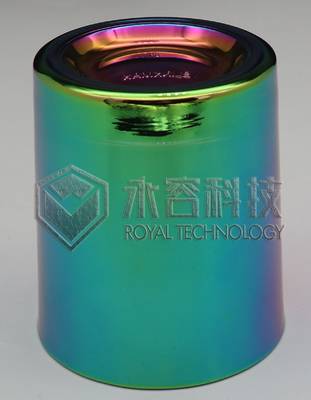

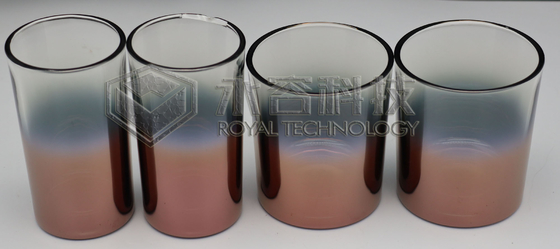

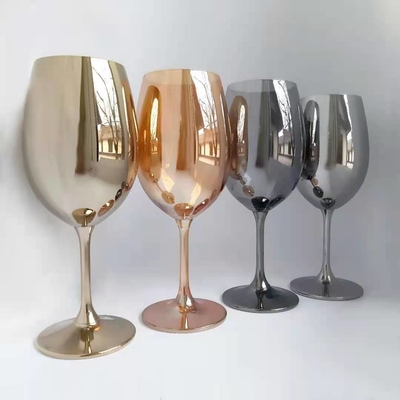

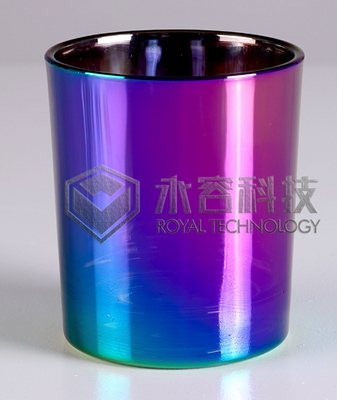

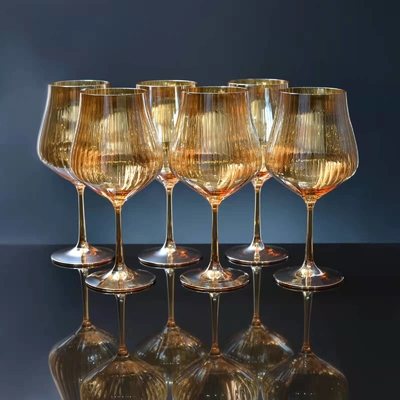

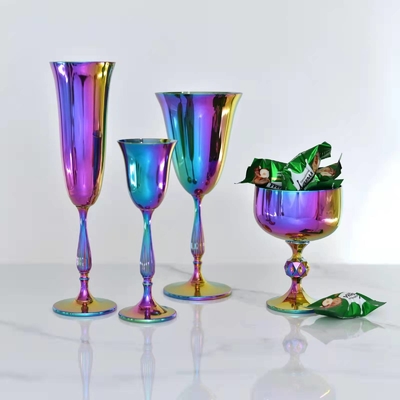

glassware coating samples.pdf Please download coated samples gallery here
2-sides Gold coating machine on glassware.pdf Please download machine brochure here

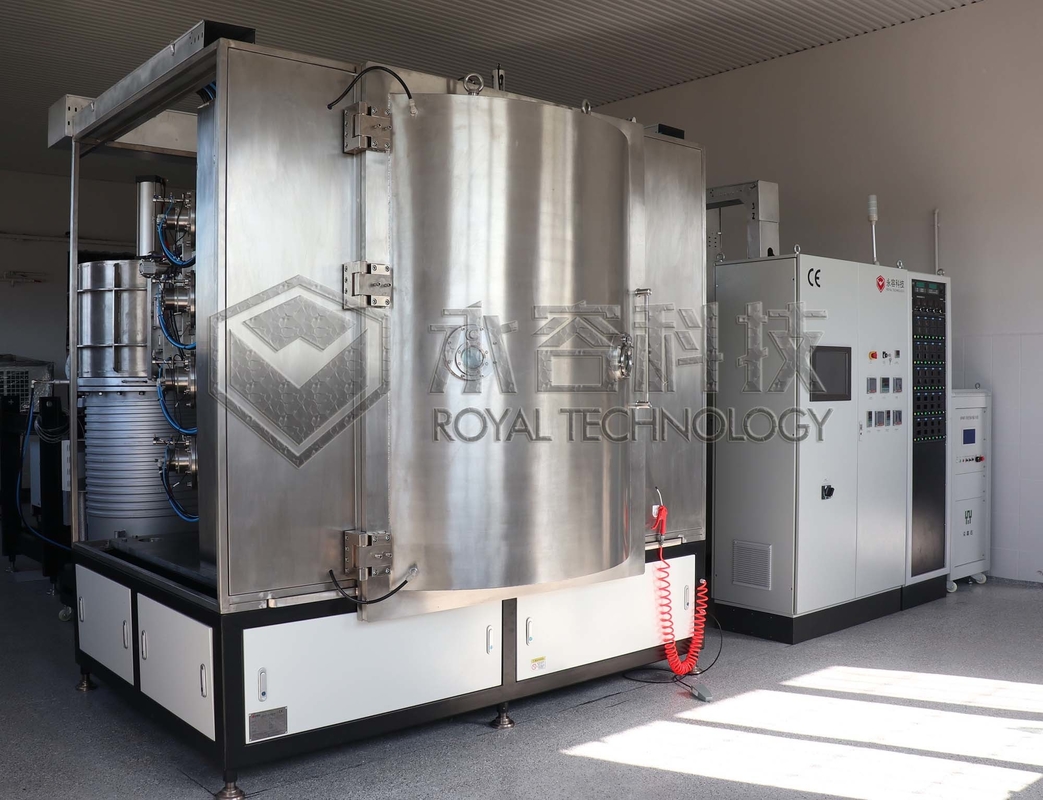

RTAC1800 machine is designed and fabricated for higher volume: glass lamp, metal wire lamp
Aaliable for ceramic vase, ceramic toilet, ceramic washing basins etc. larger workpieces
| Description | RT1400-PLUS | RTAC1800 | RTAE1600 |
| Technical Advantages |
2-sides gold color coating on glassware Energy saving and labor cost reduction 2-sets trolley & rack,pushing in/pulling out of chamber High yield |
Higher volume for glass lamp, metal wire lamp Aaliable for ceramic vase, ceramic toilet, ceramic washing basins etc. larger workpieces |
Combined arc ion plating and thermal evaporation two techniques, complement for each other: 1) Arc deposition for decorative colors from opaque to transparent; 2) Evaporation sources to deposit aluminum high reflection film. |
| Deposition Chamber |
φ1400 * H1600mm
|
φ1800 * H1800mm
|
φ1600 * H1600mm
|
|
Load Diameter (Max.) |
8*φ250mm 16*φ160mm |
10*φ340mm 12*φ300mm 18*φ200mm 24*φ140mm |
6*φ420mm + 8*φ350mm
|
| Load Height ( Effective) |
1000mm | 1400mm | 1200mm |
| Deposition Sources | 14 arc cathodes | 18 arc cathodes | 14 arc cathodes + 32 groups of Tungsten wire evaporation sources |
| Pulsed Bias Power | Max. 30KW | Max. 40KW | Max. 30KW |
| Operation & Control System |
CE standard Siemens PLC + Industrial Computer Available for remote operation and diagnosis |
CE standard Mitsubish PLC+ Touch Screen Operation Program with backup
|
|
These configurations are standard, for a specific developing market and new special coatings, the customized configurations and modifications are available on requests.
Conventional gold coatings on glassware are by aluminum vacuum metallization combine the thermal curing line.

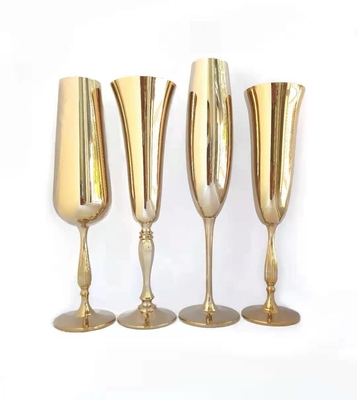

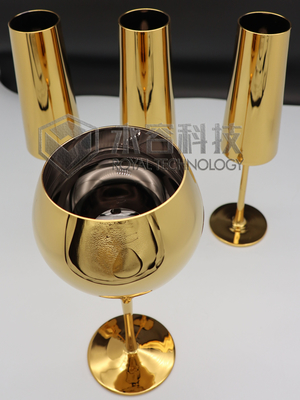

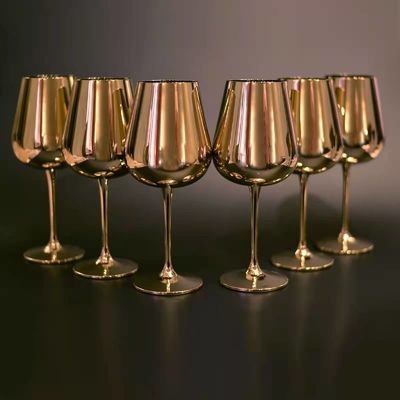

In 2020, Royal Technology developed an advanced coating technology to generate 2-sides gold colors on glassware directly without spraying painting processes ( pre/post coatings), which is by ion plating technology- arc evaporation.
This coating method is completely get rid of the spraying paintings, environmentally friendly, green technology, besides it reduces the investment of production line and labor cost for manufacturers.
Main Features
1. Standardized, modular design and fabrication
2. PS electrical enclosure, designed and manufactured strictly following CE standards
3. Operating software program in IPC is exclusive developed by Royal Technology, each set of machine is ready for system upgrading
4. One-Touch automatically coating process is available
5. Designed With 2 sets trolley and racks systems can push in/pulling out of chamber flexibly, to improve the productivity.
Advantages
1.Strong adhesion

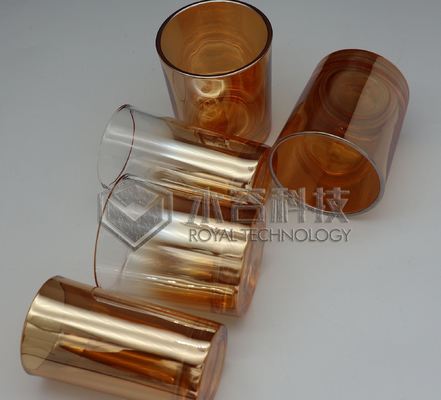

2. Both inside & outside seeing through is Gold color；And other more brighter colors of final finishing are available
3. Excellent scratch resistance
4. Environmentally-friendly process
5. Energy saving and labor cost reduce
6. Higher productivity
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
