| Brand Name: | ROYAL TECHNOLOGY |
| Model Number: | RT1600-LTAVD |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
LTAVD , Low Temperature Arc Vapor Deposition, also named as Low Temperature arc ion plating. It is applied with low temperature resistance plastic workpieces for decorative coatings:
Consumer electronics: cellphone, computer, television, cameras;
Home appliances: air conditioners, washing machine, vacuum cleaners
Bathroom and kitchen fixtures;
Automotive industry: plastic interior trims and exterior trims, LOGO
Benefits
Environmentally friendly
Deposited thickness is controllable
Stronger adhesion
Water consumption saiving
Lower cost of craftmanship
Short cycle time
Applications:
Automotive industry is one typical application, “It is a disruptive coating method , we are so happy to say Good-bye to electropless process”, Mr. Woo said excitingly who provides the automotive plastic components from Shanghai city.
Substrates are applied with like engineering plastics: PPS, ABS, ABS+PC, PA, PEEK etc.

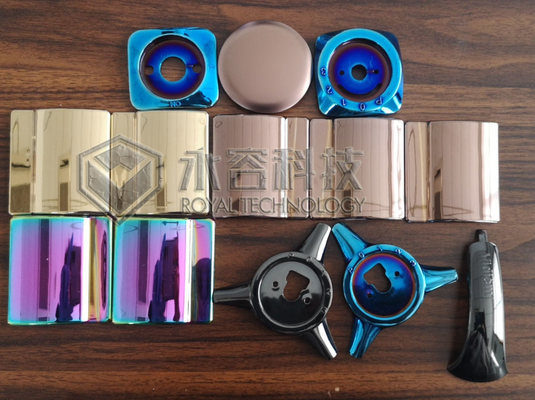

PPS products with PVD Nickle, PVD Chrome plating
Plasma Assistant PVD Deposition
ABS Mirror Gold ABS Mirror Black

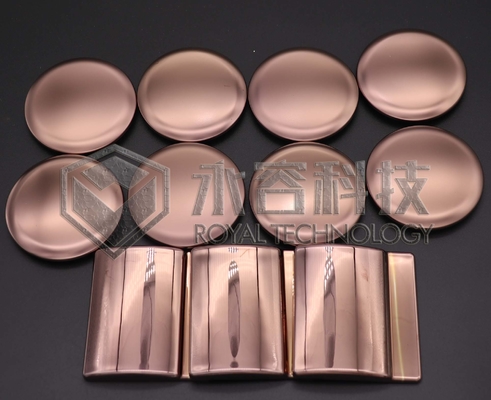

ABS Copper (Rose Gold) - Mirror and Matte Copper Plating
.
ABS Brown Coatings - Matte Brown

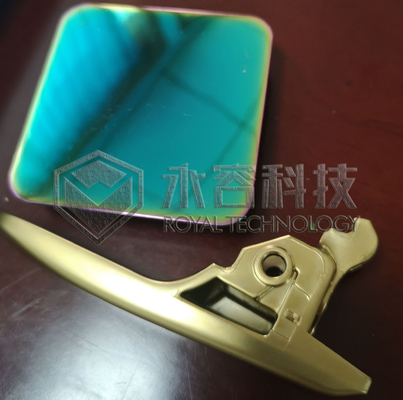

ABS Matte Black ABS Matte Gold - car handle

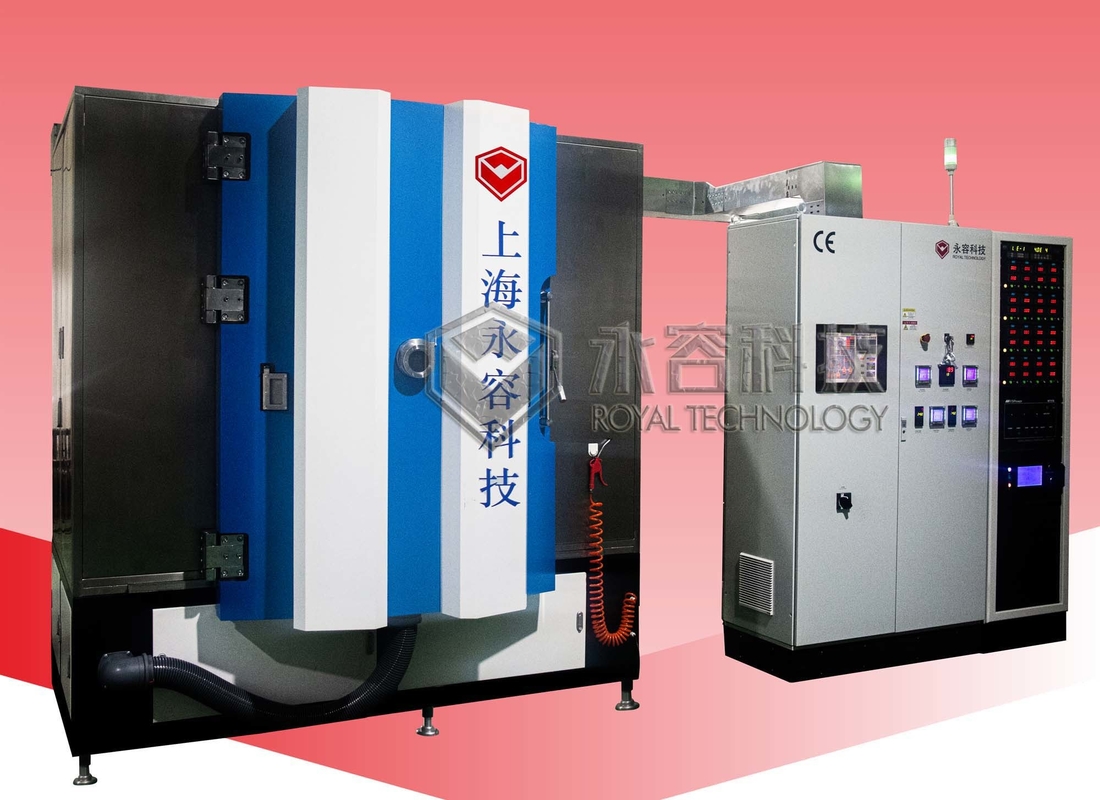

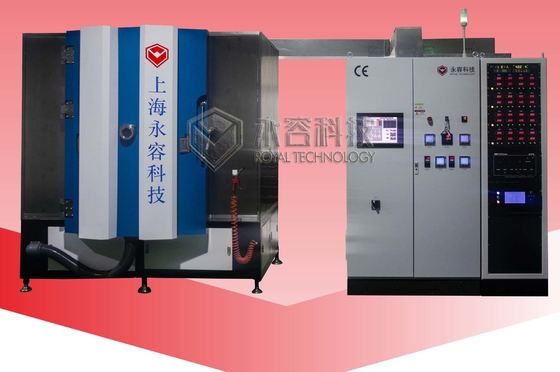

Technical Specifications
|
Description |
RT1600-PAPVD | RT1600-LTAVD |
| Applications | Engineering plastics: PPS, ABS, ABS+PC, PA, PEEK etc. |
LTAVD , Low Temperature Arc Vapor Deposition, also named as Low Temperature arc ion plating. It is applied with low temperature resistance plastic workpieces for decorative coatings: Consumer electronics: cellphone, computer, television, cameras; Home appliances: air conditioners, washing machine, vacuum cleaners Bathroom and kitchen fixtures; Automotive industry: plastic interior trims and exterior trims, LOGO
|
| Deposition Chamber |
φ1600 * H1600mm
|
|
|
Load Diameter (Max.) |
10*φ300mm 16*φ200mm
|
6*φ420mm + 8*φ350mm
|
| Load Height ( Effective) |
1200mm | |
| Deposition Sources | 14 arc cathodes + 1 set planar sputtering cathode | 14 arc cathodes |
| Pulsed Bias Power | Max. 30KW | |
| Footprint (L*W*H) | 6500*6000*4300mm | |
| Power Consumption |
Max. 70KW Average:40KW |
|
| Operation & Control System |
CE standard Mitsubish PLC+ Touch Screen Operation Program with backup
|
|
These configurations are standard, for a specific developing market and new special coatings, the customized configurations and modifications are available on requests.
Please contact us for more information.
