| Brand Name: | ROYAL TECHNOLOGY |
| Model Number: | RTAC1200 |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 SETS/MONTH |

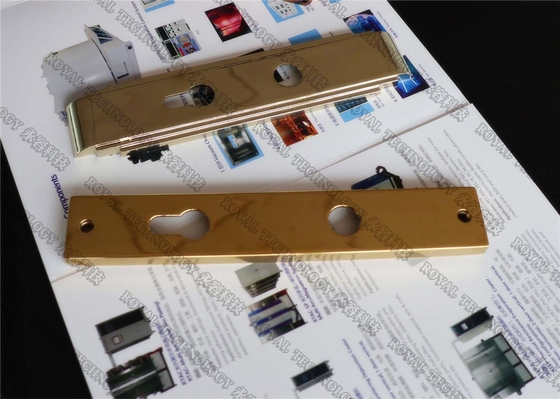

Metal door handles are usually made of Zamak (Zinc Alloy) or Aluminum Alloy, it is crucial to give a beautiful final finishes with various colors.
PVD Ion Plating technology has used so well in this application.

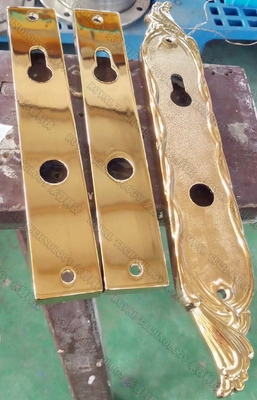

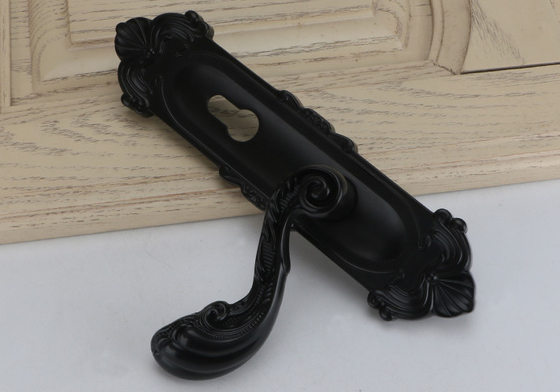

After proper surface pretreatment before PVD coating, like polishing, brushing, or sandblasting; the PVD plating system gives various PVD colors: gold, black, brown, grey, chrome, rose gold etc.
The deposited films are pure metal or multiple layers like TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.
3-RT1400-AntiBac- PVD AntiBacterial Coating Machin... PVD coating targets and decorative colors
PVD Coating Advantages
Many bright colors of final finishings
Excellent scratch resistance
Enable longer life of products
Environmentally-friendly process
Robust and high volume design machine
HMI friendly operation system
Low maintenance
Low cost of ownership

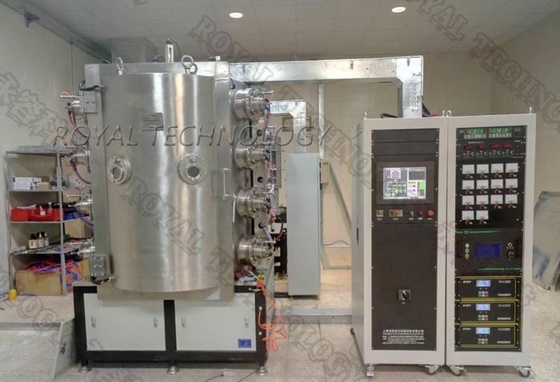

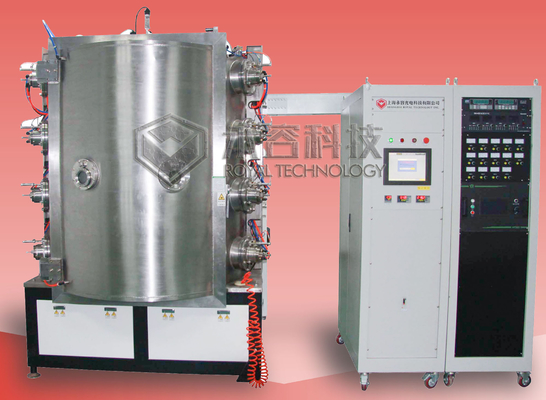

Door Handle Ion Plating Machine Features:
1. Vacuum chamber is vertical one open door , 304 stainless steel manufactures, vacuum chamber internal diameter from φ800mm-Φ2200mm;
2. Vacuum system by Rotary vane pump, Roots pump and Oil Diffusion Pumps or Molecular Pump Constitution;
3. Coating system uses 1-2 intermediate frequency magnetism to control the sputtering power source, has 1-2 pair of non-balanced magnetism to control the target, and has 6-40 arc sources.
4. High efficiency pulse bias power source;
5. The gasification system uses domestically produced or the import gaseous mass flowmeter, the gas flow amount control (demonstration) meter;
6. The electrically controlled system establishment electric circuit overloaded, cuts off the water supply, dies the acousto-optics alarm device;
7. Control system (touch-screen +PLC), real time display detailed parameter, completely automatic control entire production process, and automatic memory technological parameter
PVD Multi Arc Vacuum Coater.pdf
Multi arc evaporation coater - PVD decorative coat...
Please download the catalogue here.
