| Brand Name: | ROYAL |
| Model Number: | RTAS |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 12 sets per month |

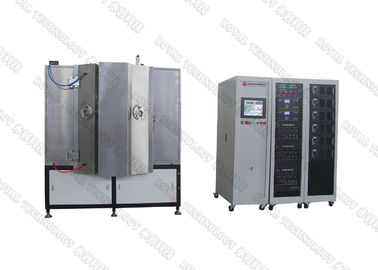

PVD Black Thin Film Coating in Watches / Watch Cases PVD Plating Machine / PVD Brushed Colors Plating Equipment

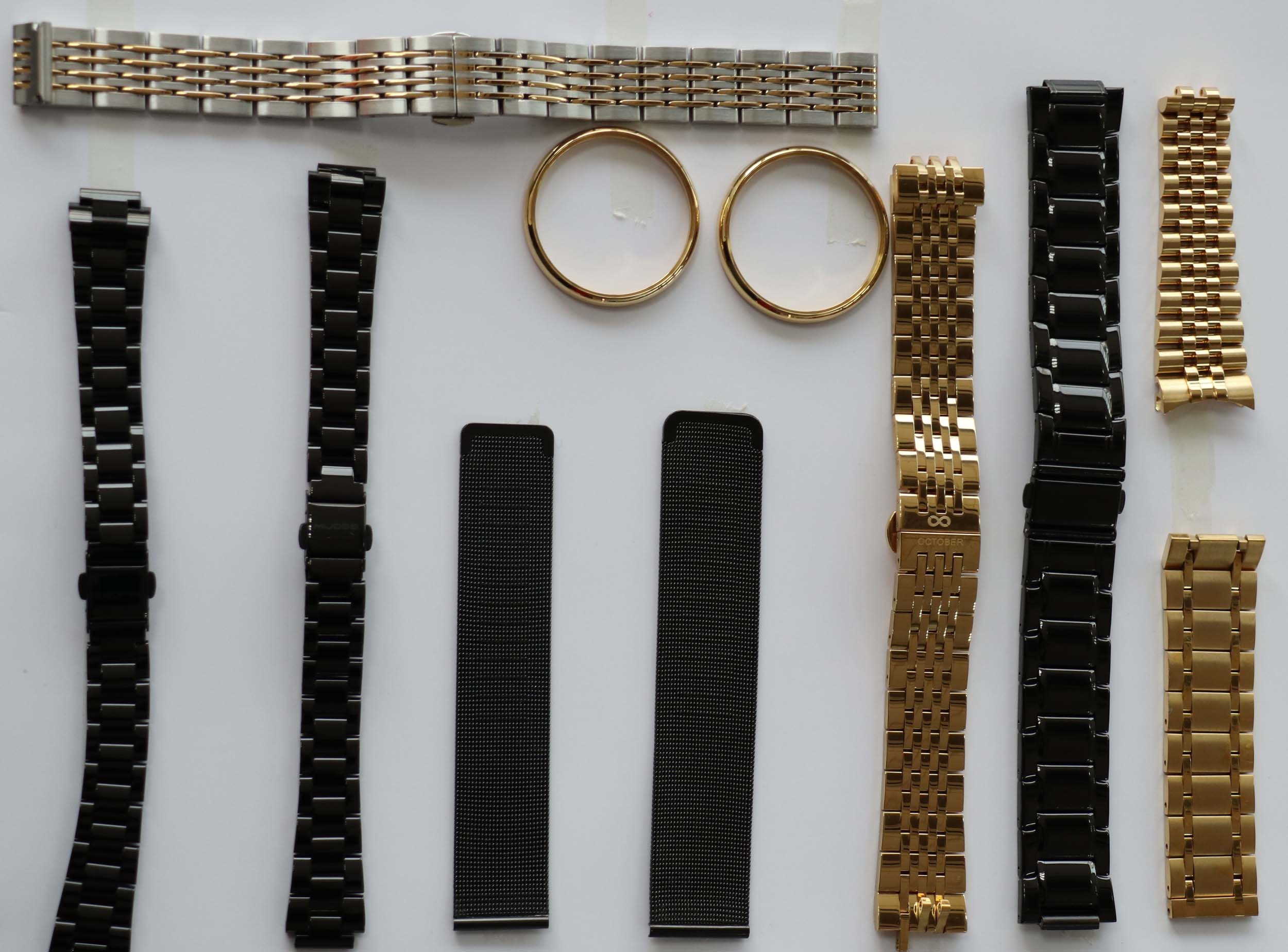

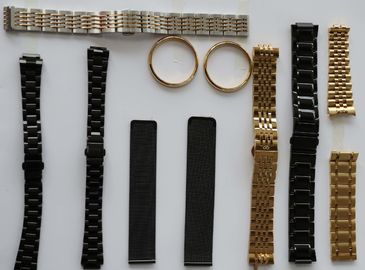

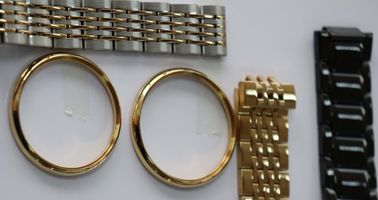

RTAC-SP black thin film PVD plating in the watch industry application
Physical Vapor Deposition (PVD) decorative hard coatings in the home appliances & electronics made of
stainless steel material has been used widely for decades. It gives an attractive colors and high wear resistance for our luxury consumer goods such as: watch components, wring instruments or spectacles. Some manufactures want to maintain both the high wear resistance of PVD and the high reflective finishing surface which provides the product with a high quality image.

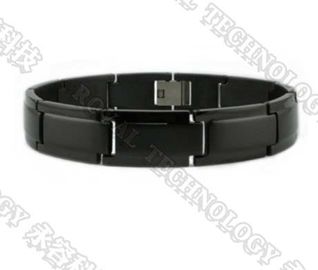

RTAC-SP black thin film coating equipment can produce highly reflective deep black films specifically for high quality aesthetic demand.
RTAC-SP black thin film coating plant advantages
Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts of Royal Team.
| RTAC1250-SP | |||||||
| MODEL | RTAC1250-SP | ||||||
| TECHNOLOGY | Magnetron Sputtering (DC or MF) + Ion Plating | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1250*H1250mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for thin black film deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Titanium | ||||||
| DEPOSITION SOURCE | 2 Cylindrical Sputtering Targets + 7 Steered Cathodic Arc Sources | ||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen |
||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU1001 - 1 sets (Leybold) | |||||||
| D60T- 2sets (Leybold) | |||||||
| Turbo Molecular Pumps: 2* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*36 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment |
||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 155KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 75KW | ||||||
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
