| Brand Name: | ROYAL |
| Model Number: | RTAC1800 |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per month |

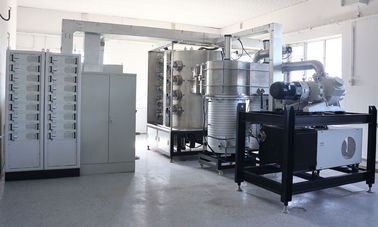

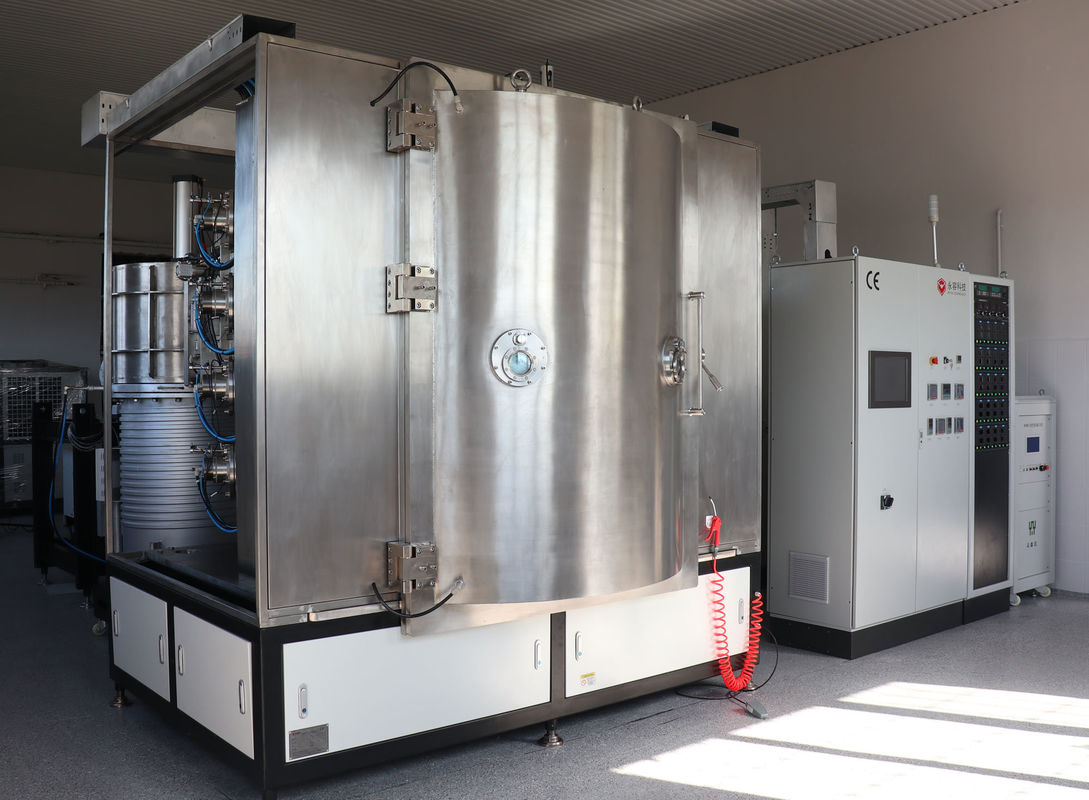

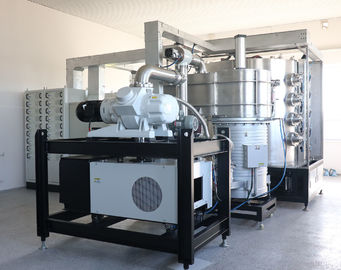

Ion Plating gold and black colors on SS kitchen sinks
The machine's location: Poland
Built Time: 2019
Applications: SS kitchen sinks, glass lamps, metal wire lamp etc.
Cathodic Arc Coating Technology & Machines
Advantages
Many bright colors of final finishings
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Robust and high volume design machine
HMI friendly operation system
Low maintenance
Low cost of ownership
Key Features
STANDARD, MODULAR DESIGN
1. PS eletrical enclosure, designed and manufactured strictly following CE standards
2. Central control cabinet with PLC, power output control and general power distributor
3. Operating software program in PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading
| Description | RTAC1000 | RTAC1200 | RTAC1400 | RTAC1600 |
|
|
Medical & beauty instruments, pen, watches, glass beads, small size products | Door handles, safe and locks, eyewear, fasteners, consumer electronic metal parts | Sanitary ware, bathroom fixtures, glassware of medium size |
Faucets, plumbings, |
|
Deposition Chamber |
φ1000 * H800 |
φ1200 * H1500 |
φ1400 * H1600 |
φ1600 * H1800 |
|
Maximum Loading |
500 | 800 | 800 | 1000 |
|
Central Driving |
φ800*H500 |
6: φ760*H1100 |
6: φ835*H1200 |
8: φ900*H1500 |
|
Planetary Driving |
6*φ250*H500 |
6: φ320*H1100 |
6: φ370*H1200 |
8: φ350*H1400 |
|
Pulsed Bias Power |
24 | 24 | 36 | 48 |
| Circular Arc Cathode (sets) | 6 | 14 | 14 | 18 |
| High Vacuum Pumps | 1*Turbo Molecular Pump | 2 * Turbo Molecular Pumps |
1* Diffusion Pump or |
2* Diffusion Pumps or |
| Backing Pumps | 1*SV300B + 1*WAU501+ 1*TRP36 | 2*SV300B+1*WAU1001+1*TRP48 | 2*SV300B+1*WAU2001+1*TRP60 | 1*SV630BF+1*WAU2001+1*TRP90 |
Other Applications:
Bathroom and shower fixtures
Sanitary ware and plumbing applies
Door handles, fasteners, safe and locks
Glass and ceramic products
Eyewear
Writing Instruments
Only to name a few, but for more applications, please contact Royal Technology.
If you are interested in outsourcing the PVD coating service, please contact us, we have global resources to help you get your desired coatings.
