Decorative Coating Machines, PVD Arc Plating Machine

Royal technology has developed Small, Medium, Big and Large sizes standard decorative arc plating machines for various parts.

RTAC1000, RTAC1200, RTAC1400, RTAC1600 models. These models have been widely applied with applications of:

• Bathroom and shower fixtures
• Sanitary ware and plumbing applies
• Door handles, fasteners, safe and locks
• Glass and ceramic products
• Eyewear
• Writing Instruments

Only to name a few, but for more applications, please contact Royal Technology .

RTAC1000 machine – small size for small items like: watch parts, medical instruments, pens.

RTAC1200 machine – medium size for door handles and security locks, metal fasteners, consumer electronics.

RTAC1400- medium size arc plating machine for sanitary ware, bathroom fittings, glassware, ceramic ware.

RTAC1600- medium size arc plating machine for faucets, brass tap ware, plumbings, furniture, metal wire lamps.

Advantages

• Many bright colors of final finishing
• Excellent scratch resistance
• Enables longer life of products
• Environmentally-friendly process
• Robust and high volume design machine
• HMI friendly operation system
• Low maintenance
• Low cost of ownership




  FASTER, MORE STABLE, BRILLIANT FINISHING

• Cathodic arc is an upgraded design to optimize emission of droplets
• The Ion evaporator with an auto pneumatic driving ignition system, manual ignition button to control the target and efficiently improve the utilization
• IGBT model of cathodic arc inverter power supply, arc discharge from 30A to 200A, arc current can be set and adjusted by PLC on the touch screen
• Cathodic arc with direct cooling method, low temperature evaporation is available.
• Stable process operation in a wide pressure range.





  FLEXIBLE GAS DISTRIBUTION SYSTEM

• 4 channel gas mass flow control system
• 3-1 or 2-2 channel gas mixing to meet flexible coating processing demands, distributed on modular designed board
• With needle valve, pressure regulator and high precision trimming valve to control the gas introduction, can be switched either manually or automatically




  CE STANDARD, MODULAR DESIGN

• PS electrical enclosure, designed and manufactured strictly following CE standards
• Central control cabinet with PLC, power output control and general power distributor
• Operating software program in PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading


  Technical Specifications



  RTAC1000 Design Advantages

• Small Footprint
• Fast Cycle Times
• Low Production Cost
• Maximum 6 arc cathodes for fast deposition of coatings
• Suitable for all small work pieces
• Optional DC/MF sputtering cathodes

• RTAC1000 Layout




  RTAC1200 Design Features

• Compact footprint design
• Robust machine for most decorative coating parts
•
• Efficient pump-down,up to 3 turbo molecular pumps
• Easy maintenance and extremely low power consumption
• Maximum 14 arc cathodes for fast deposition of coatings
• Pulsed Bias power for arc discharging
• Optional Ion Source Unit

  RTAC1200 Layout



  RTAC1400 Design Features

• Robust equipment
• Efficient pump-down, up to 3 turbo molecular pumps or
  1-diffusion oil pump
• Maximum 14 arc cathodes for fast deposition of coatings
• High volume of medium substrates loading
• Pulsed Bias power for arc discharging
• Reduced cycle decorative coatings

  RTAC1400 Layout




  RTAC1600 Design Features

• Robust equipment.
• Efficient pump-down,up to 4 turbo molecular pumps or 2 diffusion oil pump.
• Maximum 18 arc cathodes for fast deposition of coatings.
• High volume of big substrates loading.
• Pulsed Bias power for arc discharging.
• Optional DC/MF sputtering deposition sources.

  RTAC1600 Layout

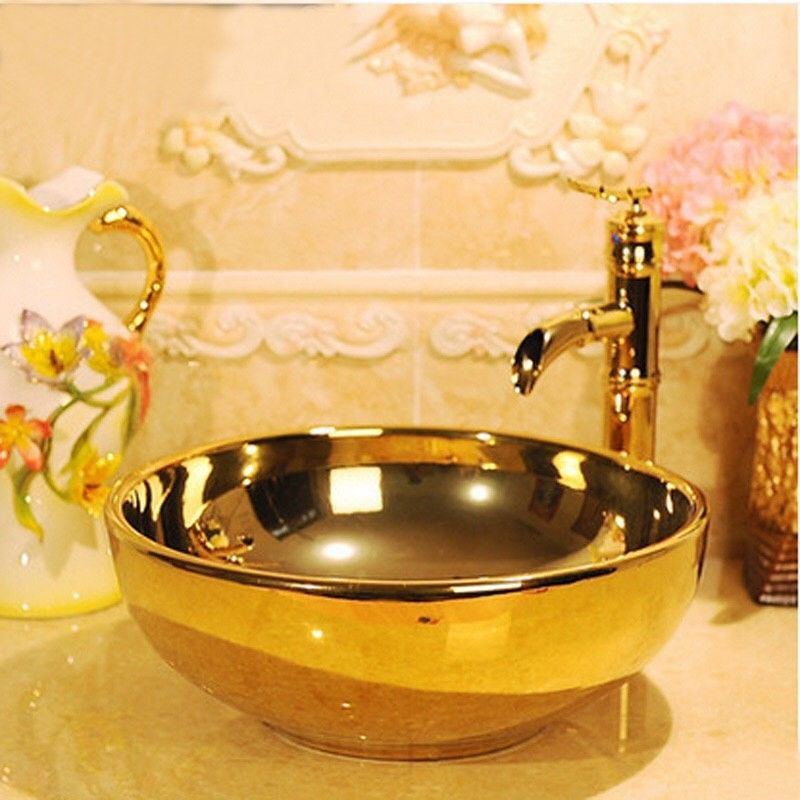

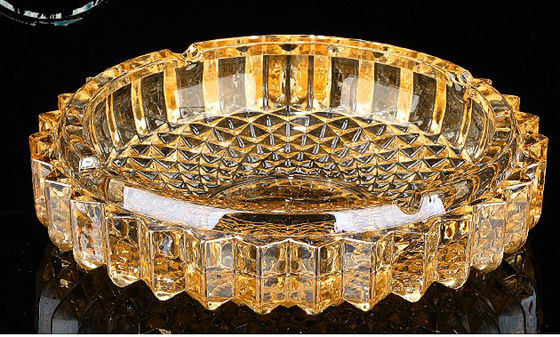

  Coating Samples|


  Insite



  Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
