| Brand Name: | ROYAL |
| Model Number: | RTAC |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 6 sets per month |
Colorful glass vacuum coating machines/magnetron equipment/metallizing PVD Plating Machine Arc Vacuum Plating Equipment

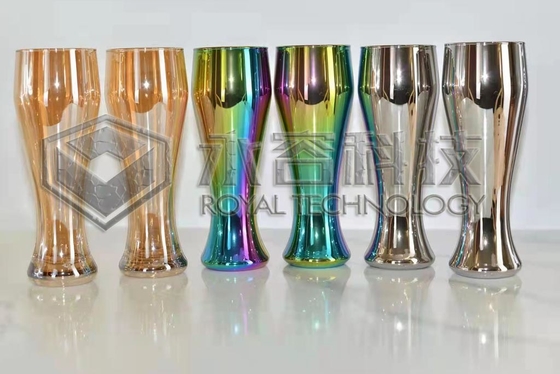

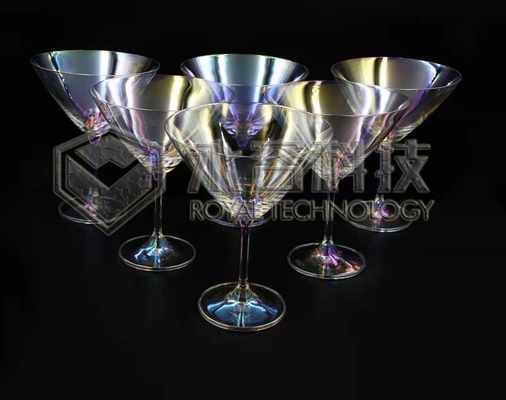

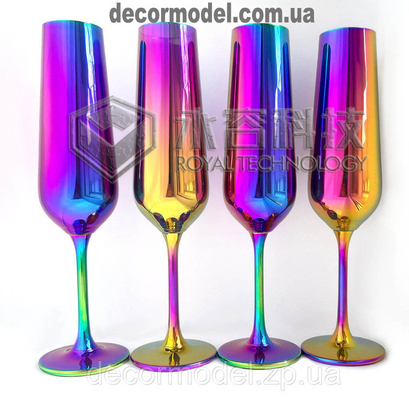

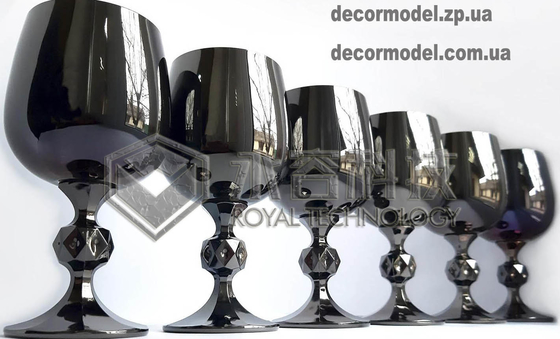

Color: gold, rose gold, silver, colorful, sapphire blue, black etc.
PVD Plating Machine Coating Films:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
In 2020, we developed an advanced coating technology to generate decorative colors on glassware directly without spraying painting processes ( base and post coatings), which is by ion plating technology- arc evaporation.
This coating method is completely get rid of the spraying paintings, help customers to reduce the investment of production line and labor cost, saving energies.
Features:
STANDARD, MODULAR DESIGN
1. PS electrical enclosure, designed and manufactured strictly following CE standards
2. Central control cabinet with PLC, power output control and general power distributor
3. Operating software program in Simens CPU +PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading. IPC one touch operation system.
Advantages:
Strong adhesion
Both inside & outside seeing through is Gold color
Many other more bright colors of final finishing
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Energy saving and labor cost reduce
Higher productivity

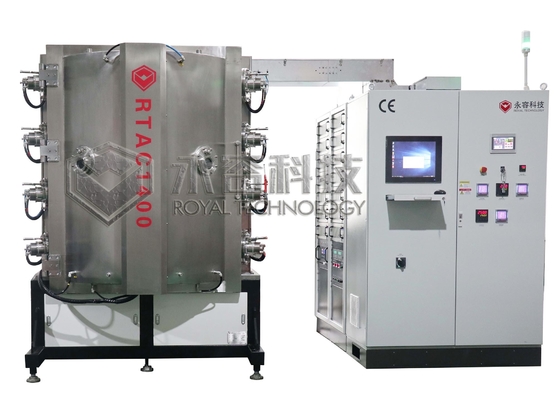

| MODEL | RTAC-1400 | ||
| MATERIAL | Stainless Steel (S304) | ||
| CHAMBER SIZE | Φ1400*1600mm (H) | ||
| CHAMBER TYPE | Cylinder, vertical, top opening door | ||
| SINGLE PUMP PACKAGE | Rotary Piston Vacuum Pump | ||
| Roots Vacuum Pump | |||
| Roots Pump | |||
| TECHNOLOGY | Cathodic Arc Evaporation, Ion Plating | ||
| POWER SUPPLY | Arc sources power supply + Bias Power supply | ||
| DEPOSITION SOURCE | Cathodic Arc Sources | ||
| CONTROL | PLC+Touch Screen | ||
| GAS | Gas Mass Flow Meters | ||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||
| COOLING | Cooling Water | ||
| CLEANING | Bias Power Plasma Cleaning | ||
| POWER MAX. | 150KW | ||
|
AVERAGE POWER CONSUMPTION |
90 KW |
||
Remark:Specially tailored according to customers’ products and process requirements.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
