| Brand Name: | ROYAL |
| Model Number: | RTAS |
| MOQ: | 1 set |
| Price: | negotiatable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6 sets per month |

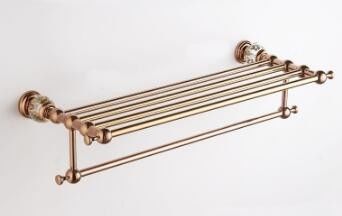

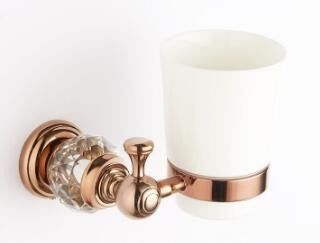

Wall Mounted Brass Rose Gold Sanitary Bathroom Accessories Set Thin Film coating machine Systems
This machine has been benefiting variety of industries for high end quality products like: Wall Mounted Brass, automotive bearings, medical instruments, military, aerospace, industrial sealing parts, watches, etc. which require high durability and min. coefficient of friction.
PECVD + PVD process DLC coating technique has been developed by us for years to satisfy the highest standard application. This process providing an unique and flawless finishing on the product surface except extrodiary beauty.

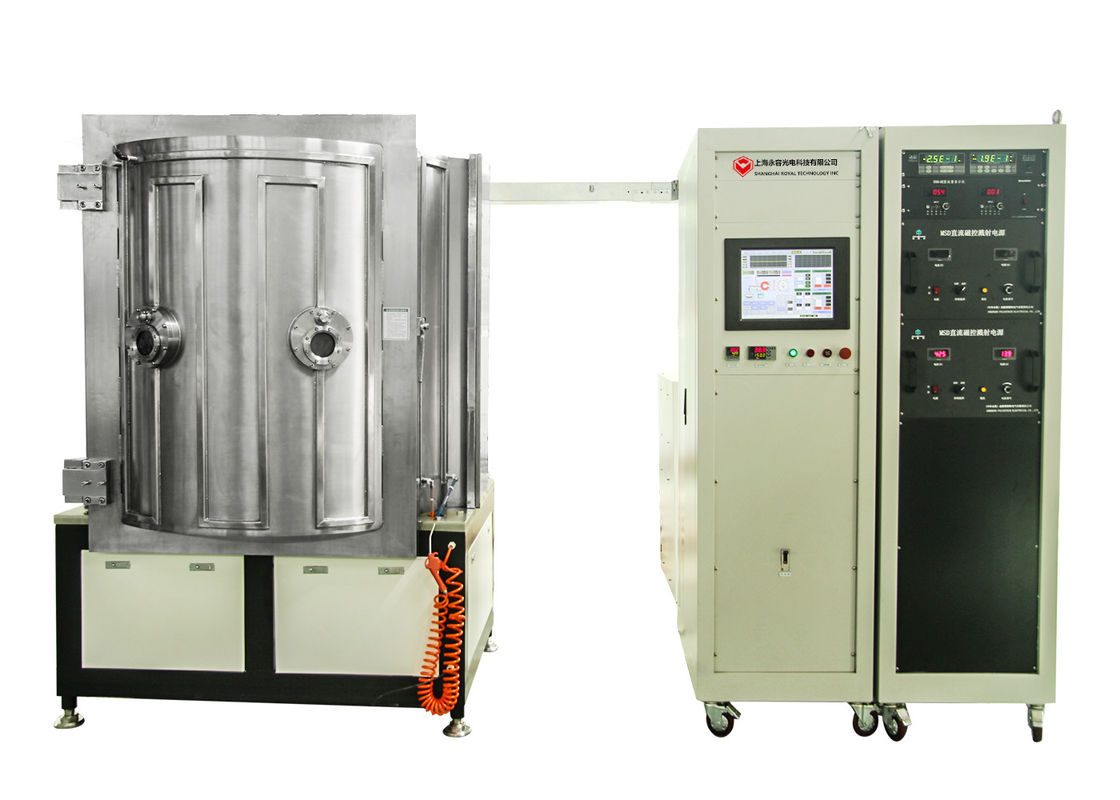

Watches DLC Thin Film Coating Machine Specifications
| MODEL | RTAS1010 | |||||||
| TECHNOLOGY | MF magnetron sputtering + multi arc cathodes | |||||||
| CHAMBER MATERIAL | Stainless Steel (S304) | |||||||
| CHAMBER SIZE | Φ1000*1000mm (H) | |||||||
| CHAMBER TYPE | Regular octahedron chamber, 2-doors | |||||||
| ROTATION RACK & JIG SYSTEM | 6 (8)satellite, Max. weight: 400kgs | |||||||
| POWER SUPPLIES | Qty. of Sputtering: 2*24 KW Bias of Power Supply: 1*24W AE power supply for option Ion Source Power supply 2 sets, AE power supply for option | |||||||
| DEPOSITION MATERIAL | Zr, Ti, Cr, TiAl, etc. | |||||||
| DEPOSITION SOURCE |
2 pairs (4 pieces) Sputtering Cathodes + 2 Ion Source Coating Area: Dia800mm*H550mm; Uniformity Area: ±10~15% |
|||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models) | |||||||
| PUMP SYSTEM | Rotary Vane Pump: SV300B - 1 set (Leybold) | |||||||
| Roots Pump: WAU1001 - 1 set (Leybold) | ||||||||
| Holding Pump: D60C-1set- (Leybold) | ||||||||
| Magnetric Rotor Suspension Molecular Pump: MAG2200 - 2 sets (Leybold) | ||||||||
| GAS MASS FLOW CONTROLLER | 3 channels, Made in America (MKS brand) | |||||||
| VACUUM GAUGE | Model: ZDF-X-LE, Made in China | |||||||
| Linear Ion Source | 2 pieces Pre-treating, plasma cleaning + assisted deposition | |||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | |||||||
| HEATING | Heaters: 20KW. Max. temp.: 400℃ | |||||||
| COOLING | Industrial Chiller (Cold Water) | |||||||
| POWER MAX. | 100KW (Approx.) | |||||||
| AVERAGE POWER CONSUMPTION | 45 KW (Approx.) | |||||||
| GROSS WEIGHT | T (Approx.) | |||||||
| FOOT PRINT | ( L*W*H) 4000*4000 *4000 MM | |||||||
| POWER ELECTRICAL | AC 380V/3 phases/50HZ |
|||||||
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
