| Brand Name: | ROYAL |
| Model Number: | RTAC1416 |
| MOQ: | 2 sets |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |

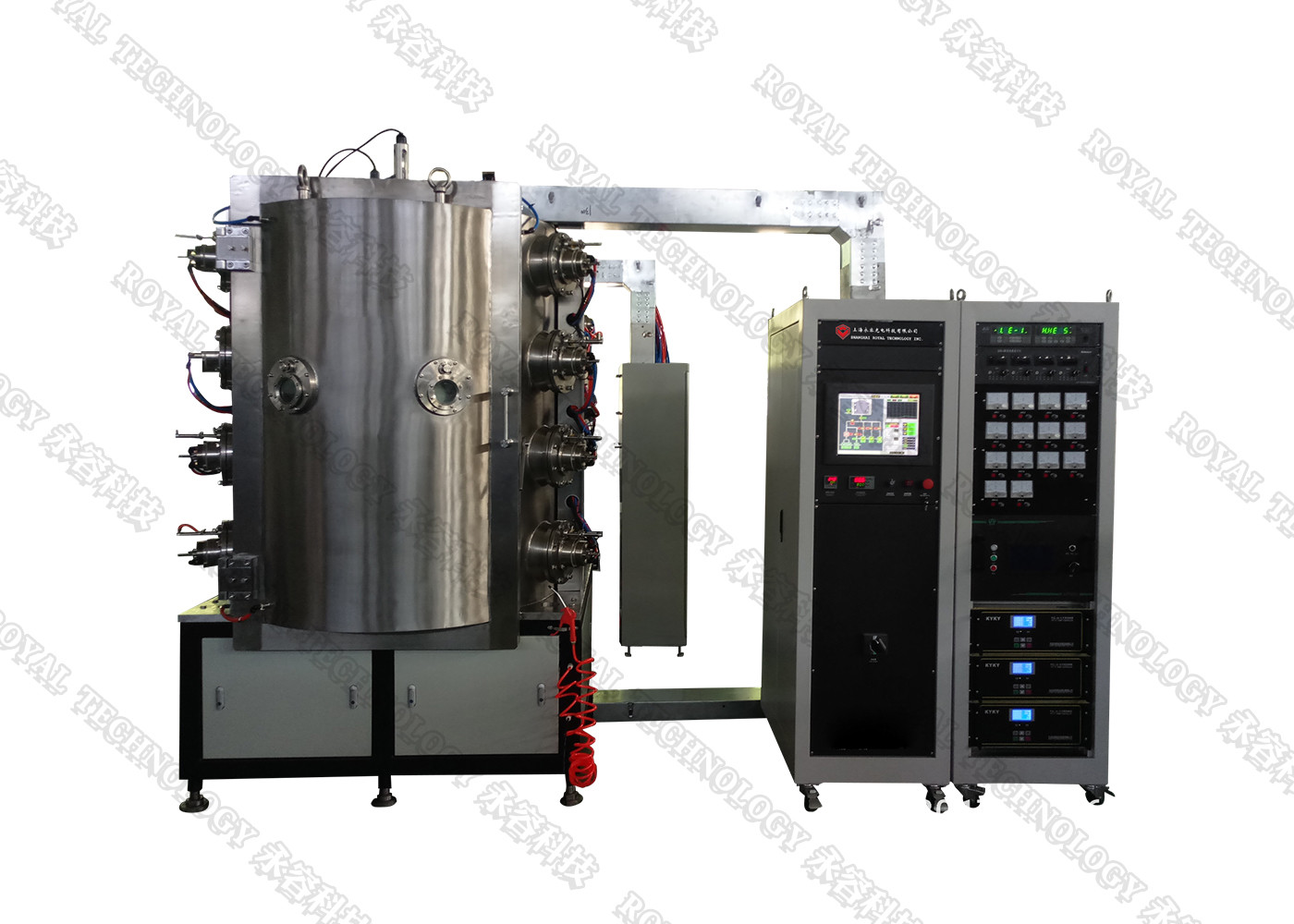

Rose gold door handle Ion Plating Machine , Titanium Nitride PVD Coating Equipment
General Information
1. CAC series equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate carrier etc. 2. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.
3.Coating Types: metal & alloy coatings, like: TiN, ZrN, CrN. 4. Coating Colors: gold, silver, rose gold, gun black etc.
5.Substrates: door/window/cupboards handles, door locks etc. Copper Alloy Faucets. (MS60), ZinC alloy, Brass, stainess steel . Other materials like: glass, cermaic and crystals etc. 6. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection.
MODEL RTAC-1416
CHAMBER MATERIAL SUS304
CHAMBER SIZE Φ1400*1600mm (H)
PUMP SYSTEM Rotary Piston Vacuum Pump (Mechanical)
Rotary Vane Vacuum Pump (Holding)
Roots Vacuum Pump
High Vacuum Oil Diffusion Pump
TECHNOLOGY Ion Plating ( Multi-arc sources)
TYPICAL TARGETS Titanium, Zirconium, Chrome etc.
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
CONTROL PLC(Programmable Logic Controller)
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Recyle Cooling Water
HEATING Heater Pipe
POWER MAX. 75KW (Approx.)
AVERAGE POWER CONSUMPTION 40KW (Approx.)
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
